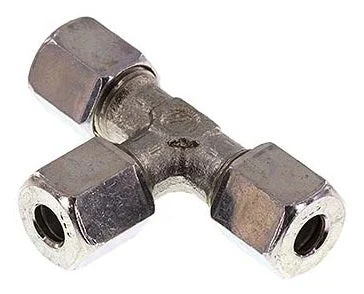

17F Zinc plated Steel Tee Cutting Ring DIN 2353

This T-screw connection is designed with 3 cutting ring connections in a T shape. Connection 1 is a 17 mm cutting ring. Connection 2 is a 17 mm cutting ring. Connection 3 is a 17 mm cutting ring. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). It is made in accordance with the ISO 8434-1 (DIN 2353).

Cons:

• Since it has a cutting ring connection, it can only be used once

FL3T-C series

The FL3T-C series has 3 connection ports of all compression ring connections or cutting ring connections. They are in a T shape. Made out of brass, steel, or stainless steel they have a max pressure of 630bar for some models.

Specifications

Union nut thread : M24 x 1.5
Cutting ring connection (mm) : 17
Load class (DIN 2353) : French standard
Material : Steel
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Angle adjustable : No
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
Surface protection connection 3 : Galvanic/electrolytic zinc plated
With drain : No
