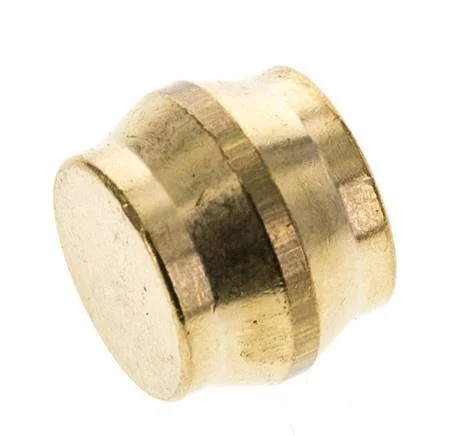

18mm Brass Closing Plug for Compression Ring Fittings 67 Bar DIN EN 1254-2 [2 Pieces]

This closing plug is designed with female threaded connections. It is an end cap, so it has no output port. It is made out of brass. At 20 °C (68 °F), it can handle a maximum pressure of 67 bar (972 psi). It is made in accordance with the DIN EN 1254-2.

FL1 series

The FL1 series consists of fittings with 1 connection port, so they are plugs (also called blind fittings), designed for cutting rings and/or threaded connections. Made out of brass, steel, or stainless steel for pipe sizes (outer diameter) ranging from 4 – 42 mm. They are designed to stop the media flow.

Specifications

Fitting features : Capped
Material : Brass
Max pressure at 20 °C (bar) : 67
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Material connection 1 : Brass
With drain : No
