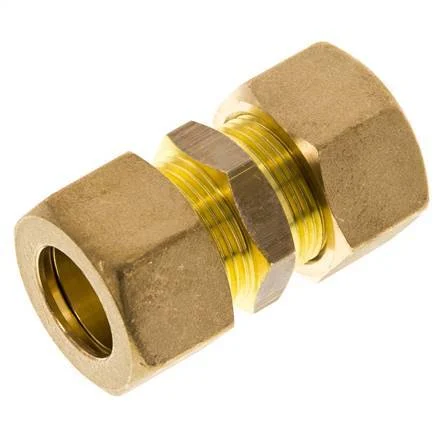

18mm Brass Straight Compression Fitting 67 Bar DIN EN 1254-2

This straight screw connection is designed with two compression ring connection points. Connection 1 is a 18 mm compression ring. Connection 2 is a 18 mm compression ring. It is a straight fitting. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 67 bar (972 psi). It is made in accordance with the DIN EN 1254-2.

Cons:

• Since it has a compression ring connection, it can only be used once

FL2S-C series

The FL2S-C series are straight fittings designed with either 2 compression ring connection points or 2 cutting ring connection points. They are made out of steel.

Specifications

Compression ring connection (mm) : 18
Material : Brass
Max pressure at 20 °C (bar) : 67
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Model : 5-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
