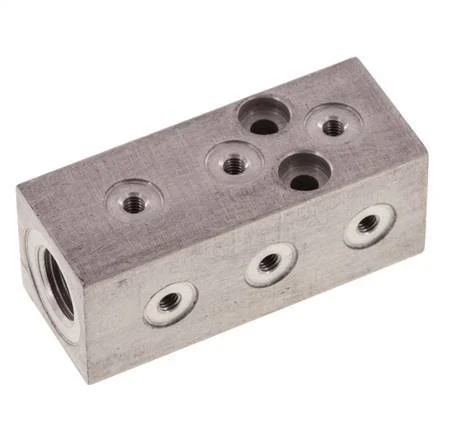

1xG 1/8” x 9xM3 Aluminium Distributor Block One-sided 16 Bar

This distributor bar is designed to distribute the inlet media to multiple outlets. Connection 1 has female G 1/8 inch threads. Connection 2 has female M 3 threads. It has 9 outlets (all the same type/size as connection 2). It is made out of aluminium. It has a total length of 45 mm. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL2-F series

The FL2-F series are distributor bars, also referred to as blocks. They can have 1 or 2 inlet ports and between 2 – 12 outlet ports for compressed air distribution (max pressure of 16 bar). They are all made out of aluminum and between 45 and 224 mm in length.

Specifications

Thread : M3
Thread (smaller) : 1/8 inch
Connection type : Inner thread cylindrical BSPP-G,Inner thread metric
Material : Aluminum
Max pressure at 20 °C (bar) : 16
Number of outlets : 9
Fitting features : Reducing
Length (mm) : 45
Material connection 1 : Aluminum
Material connection 2 : Aluminum
