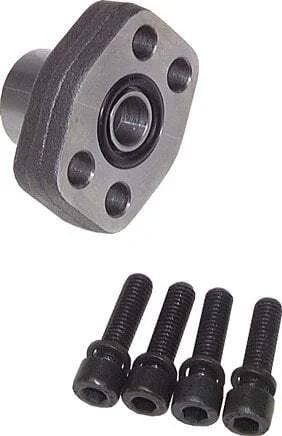

2” SAE Flange 6000 PSI Plain Steel with G1-1/2” Female Threads ISO 6162-2

This is an SAE flange with a female thread connection. It adheres to SAE Code 62 (6000 psi working pressure) and has an SAE-4 mounting pattern size of 2 inch. Connection 2 has G 1-1/2″ female threads. The body is made of plain steel with an NBR seal. The maximum pressure is 420 bar (6090 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-2.

Pros:

• Adheres to ISO 6162-2
• Suitable for hydraulic applications

Specifications

Thread : 1 1/2 inch
SAE – hole pattern : 2 inch – SAE (6000 PSI)
Connection type : Flange,Inner thread cylindrical BSPP-G
Material : Plain steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 420
Min temperature (°C) : -30
Max temperature (°C) : 90
Standard : ISO 6162-2
Material connection 1 : Plain steel
Material connection 2 : Plain steel
Shape : Straight
With drain : No
