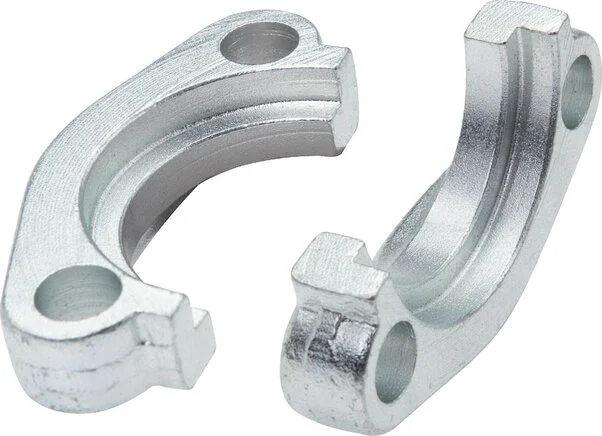

2” SAE Flange Halves 3000 PSI Stainless Steel ISO 6162-1

These are SAE flange halves for SAE fittings with a flange diameter of 71.4 mm. They adhere to SAE Code 61 (3000 psi working pressure) and have an SAE-4 mounting pattern size of 2 inch. The body is made of stainless steel. The maximum pressure is 200 bar (2900 psi). It is made in accordance with the ISO 6162-1.

Note: The operating pressure is dependent on the strength of the screws.

Pros:

• Adheres to ISO 6162-1
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Material : Stainless steel
SAE – hole pattern : 2 inch – SAE (3000 PSI)
Number of bolt holes : 4
Diameter bolt hole (mm) : 13.5
Max pressure (bar) : 200
Standard : ISO 6162-1
