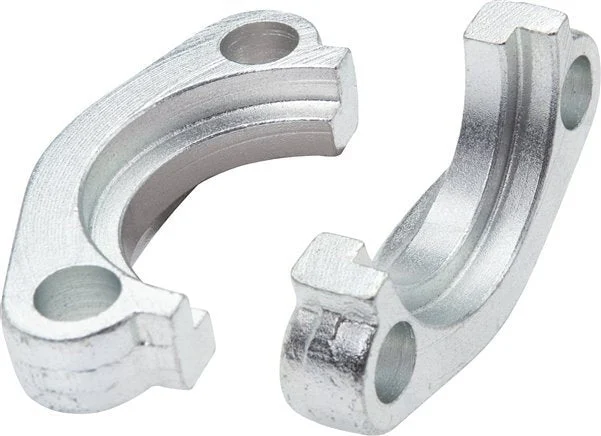

2” SAE Flange Halves 6000 PSI Stainless Steel ISO 6162-2

These are SAE flange halves for SAE fittings with a flange diameter of 79.4 mm. They adhere to SAE Code 62 (6000 psi working pressure) and have an SAE-4 mounting pattern size of 2 inch. The body is made of stainless steel. The maximum pressure is 400 bar (5800 psi). It is made in accordance with the ISO 6162-2.

Note: The operating pressure is dependent on the strength of the screws.

Pros:

• Adheres to ISO 6162-2
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Material : Stainless steel
SAE – hole pattern : 2 inch – SAE (6000 PSI)
Number of bolt holes : 4
Diameter bolt hole (mm) : 21
Max pressure (bar) : 400
Standard : ISO 6162-2
