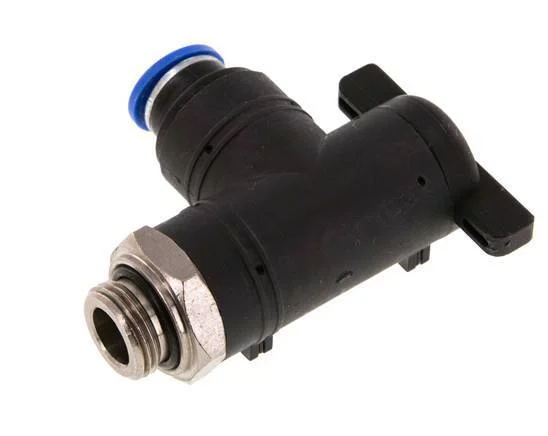

2-Way Elbow Ball Valve 10 mm – G3/8” Plastic/Brass

This is a nickel-plated brass/pa66/pps 2-way elbow ball valve for open/close control of the air flow. It has a 10 mm push-in fitting on one side and an G 3/8 inch male threaded port on the other side. It has NBR seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. Use the quarter-turn handle to open or close the valve.

Pros:

• Simple design
• Suitable for vacuum applications

Specifications

Connection size : 3/8 inch
Connection type : Outer thread cylindrical BSPP-G,Push-in
Seal material : NBR (nitrile rubber)
Max pressure difference at 20 °C (bar) : 20
Push-in connection : 10 mm
Min temperature (°C) : -20
Max temperature (°C) : 80
Vacuum (bar) : -0.95
Model : Elbow
With drain : No
