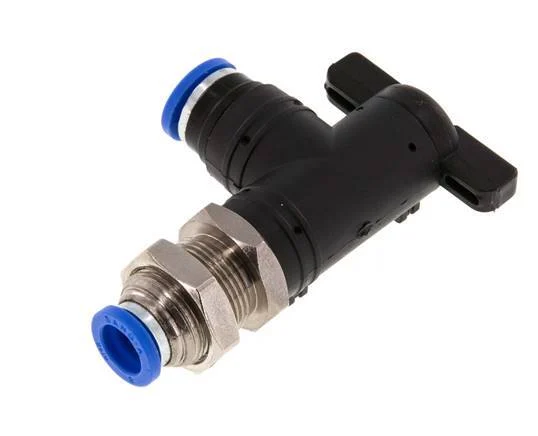

2-Way Elbow Ball Valve 8 mm Plastic/Brass Bulkhead

This is a nickel-plated brass/pa66/pps 2-way elbow ball valve for open/close control of the air flow. It has 8 mm push-in fittings on both sides. It has NBR seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The bulkhead thread has an M 16×1 thread with a length of 10 mm. Use the quarter-turn handle to open or close the valve.

Pros:

• Simple design
• Suitable for vacuum applications

Specifications

Connection type : Push-in
Seal material : NBR (nitrile rubber)
Max pressure difference at 20 °C (bar) : 20
Push-in connection : 8 mm
Min temperature (°C) : -20
Max temperature (°C) : 80
Vacuum (bar) : -0.95
Model : Elbow
Bulkhead nut : M16 x 1
With drain : No
