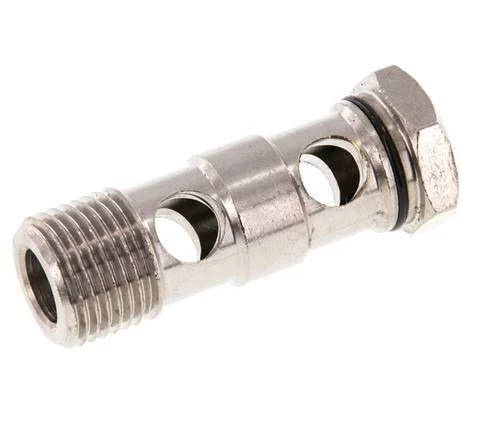

2-way nickel-plated Brass Banjo Bolt with G1/2” Male Threads NBR

This is a nickel-plated brass 2-way banjo bolt. It has G 1/2 inch male threads. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 60 °C (-4 to 140 °F). It has NBR gasket.

Pros:

• It has NBR gasket
• Suitable for neutral and non-corrosive media

Specifications

Thread : 1/2 inch
Connection type : Outer thread cylindrical BSPP-G
Fitting features : Vacuum,2 way
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -20
Max temperature (°C) : 60
Min pressure (bar) : -0.95
Material connection 1 : Brass
Surface protection connection 1 : Nickel-plated
With drain : No
