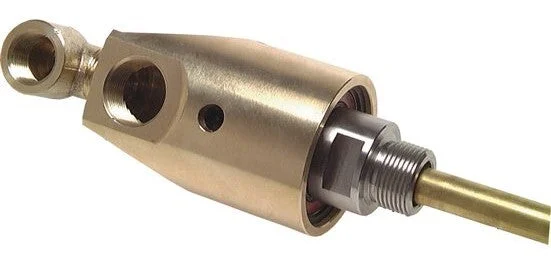

2-Way Rotary Joint G1/2” – G3/4” Male Right Hand x Female Brass 50bar (702.5psi)

This two-way rotary joint is typically used to transfer water from a supply line to continuously rotating equipment or from equipment to the return line. Brass fittings are suitable for neutral and non-corrosive media. The maximum operating pressure is 50 bar (702.5 psi).

Note: The left-handed thread is used for drums that rotate clockwise. The right-handed thread is fed into the counter-clockwise rotating drum.

Specifications

Thread : 3/4 inch
Thread (smaller) : 1/2 inch
Connection type : External thread BSPP-G left hand,Inner thread cylindrical BSPP-G
Material : Brass
Fitting features : Reducing
Max pressure at 20 °C (bar) : 50
Min temperature (°C) : 0
Max temperature (°C) : 95
Angle adjustable : No
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
With drain : No
