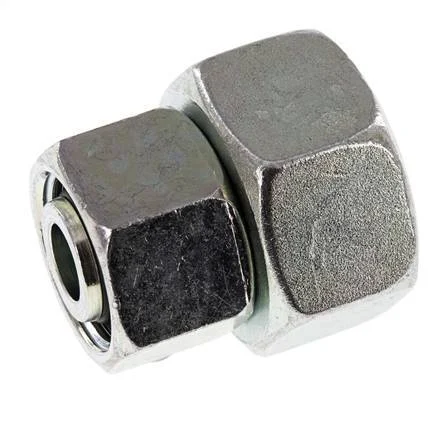

20S & 25S Zink plated Steel Straight with Swivel 400 bar NBR O-ring Sealing Cone ISO 8434-1

This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. Connection 1 has a 20 mm swivel tube connection. Connection 2 has a 25 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is NBR. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• With O-ring and sealing cone
• Suitable for hydraulic applications

Specifications

Load class (DIN 2353) : S (heavy)
Swivel tube connection : 25 S
Swivel tube connection (smaller) : 20 S
Connection type : Swivel tube connection
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -35
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Type of sealing : O-ring
Threaded end seal 1 : Sealing cone
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
With drain : No
