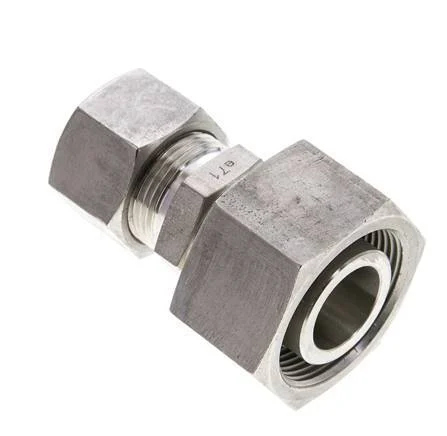

20S & 30S Stainless Steel Straight Cutting Fitting with Swivel 400 bar ISO 8434-1

This stainless steel 1.4571 straight screw in connection is designed with cutting ring and swivel tube connection ports. Connection 1 is a 20 mm cutting ring with a M30x2 union nut. Connection 2 has a 30 mm swivel tube connection. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Union nut thread : M30 x 2
Load class (DIN 2353) : S (heavy)
Swivel tube connection : 30 S
Cutting ring connection (mm) : 20
Connection type : Cutting ring,Swivel tube connection
Material : Stainless steel
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Shape : Straight
With drain : No
