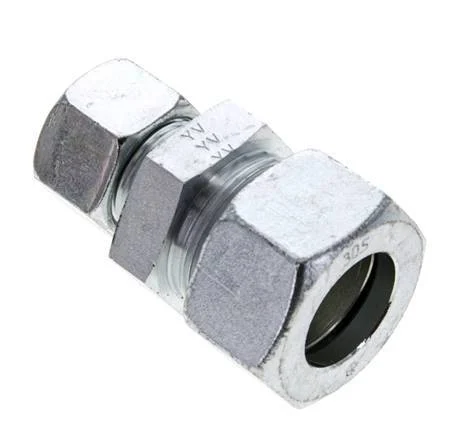

20S & 30S Zink plated Steel Straight Cutting Fitting 400 bar ISO 8434-1

This zink plated steel straight screw connection is designed with two cutting ring connection points. Connection 1 is a 30 mm cutting ring with a M42x2 union nut. Connection 2 is a 20 mm cutting ring with a M30x2 union nut. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Union nut thread : M30 x 2,M42 x 2
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 30
Cutting ring connection smaller (mm) : 20
Connection type : Cutting ring
Material : Steel
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
With drain : No
