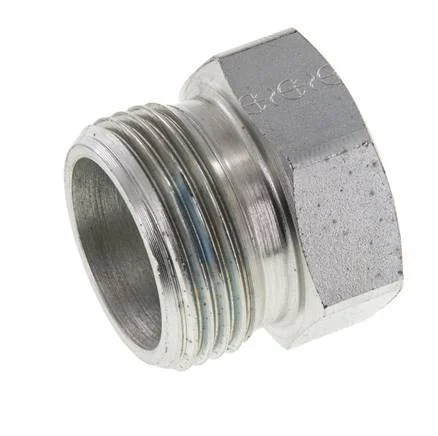

20S Zinc plated Steel Closing Plug for Tubes 400 Bar DIN 2353

This closing plug is designed with a cutting ring connection point. It is the plug, so it has no output port. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the ISO 8434-1 (DIN 2353).

FL1 series

The FL1 series consists of fittings with 1 connection port, so they are plugs (also called blind fittings), designed for cutting rings and/or threaded connections. Made out of brass, steel, or stainless steel for pipe sizes (outer diameter) ranging from 4 – 42 mm. They are designed to stop the media flow.

Specifications

Union nut thread : M30 x 2
Load class (DIN 2353) : S (heavy)
Fitting features : Hydraulic,Capped
Material : Steel
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Material connection 1 : Steel
Surface protection connection 1 : Galvanic/electrolytic zinc plated
