20S Zink plated Steel Elbow Ball-Guided Swivel Joint Cutting Fitting Bulkhead DN 16350 bar NBR ISO 8434-1

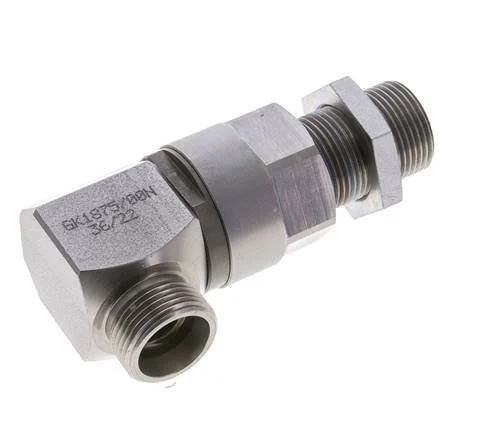

This zink plated steel elbow ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 20 mm cutting ring with a M30x2 union nut. Connection 2 is a 20 mm cutting ring with a M30x2 union nut. The seal material is NBR. The maximum pressure is 350 bar (5075 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The nominal diameter is 16 mm. The bulkhead thread has an M 30×2 thread with a length of 19 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Union nut thread : M30 x 2
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 20
Connection type : Cutting ring
Material : Steel
Seal material : NBR (nitrile rubber)
Nominal diameter (mm) : 16
Max pressure at 20 °C (bar) : 350
Min temperature (°C) : -20
Max temperature (°C) : 90
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : Bulkhead,Ball guided,High pressure
Bulkhead length (mm) : 19
Bulkhead nut : M30 x 2
Max. number of revolutions (Rpm) : 20
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
With drain : No
