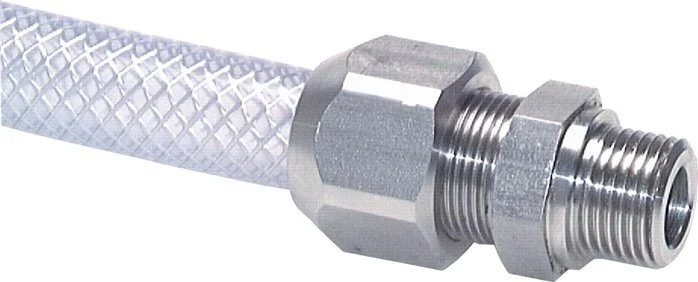

20x13mm & G1/2” Stainless Steel Straight Compression Fitting with Male Threads 10 bar PTFE

This stainless steel 1.4571 straight screw in connection is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 20×13 mm compression ring. Connection 2 has male G 1/2 inch threads. The seal material is PTFE. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -40 to 200 °C (-40 to 392 °F).

Pros:

• Frequent assembly and disassembly possible
• No hose clip or projecting mesh wires of the metal braid
• Stainless steel material has better chemical resistance than other materials

Cons:

• This fitting can only be used with hoses made of polypropylene, PVDF, aluminium or stainless steel

Specifications

Thread : 1/2 inch
Compression ring connection (mm) : 20
Hose inside x outside : 13×20 mm
Connection type : Compression ring,Outer thread cylindrical BSPP-G
Material : Stainless steel
Seal material : Teflon (PTFE)
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -40
Max temperature (°C) : 200
Fitting features : Vacuum
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Straight
With drain : No
