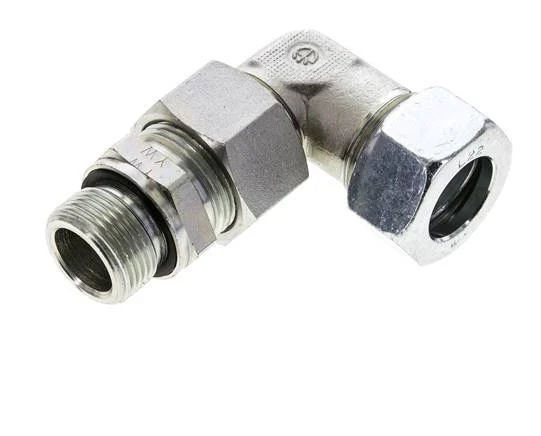

22L & G3/4” Zink plated Steel Elbow Cutting Fitting with Male Threads 160 bar Adjustable ISO 8434-1

This zink plated steel elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. It has an adjustable connection. Connection 1 is a 22 mm cutting ring with a M30x2 union nut. Connection 2 has male G 3/4 inch threads. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• It has adjustable connection
• Suitable for hydraulic applications

Specifications

Thread : 3/4 inch
Union nut thread : M30 x 2
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 22
Connection type : Cutting ring,Outer thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 160
Min temperature (°C) : -35
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : Adjustable
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
With drain : No
