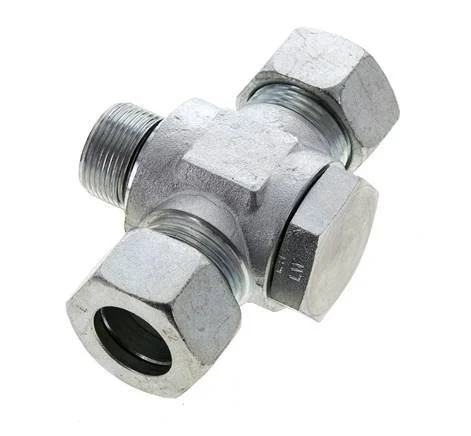

22L & M26x1.5 Zink plated Steel Tee Swivel Joint Cutting Fitting with Male Threads 160 bar NBR ISO 8434-1

This zink plated steel Tee swivel joint is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 22 mm cutting ring with a M30x2 union nut. Connection 2 is a 22 mm cutting ring with a M30x2 union nut. Connection 3 has male M 26×1.5 threads. The seal material is NBR. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Thread : M26 x 1.5
Union nut thread : M30 x 2
Cutting ring connection (mm) : 22
Load class (DIN 2353) : L (light)
Connection type : Cutting ring,Outer thread metric
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 160
Min temperature (°C) : -35
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
Surface protection connection 3 : Galvanic zink plated
With drain : No
