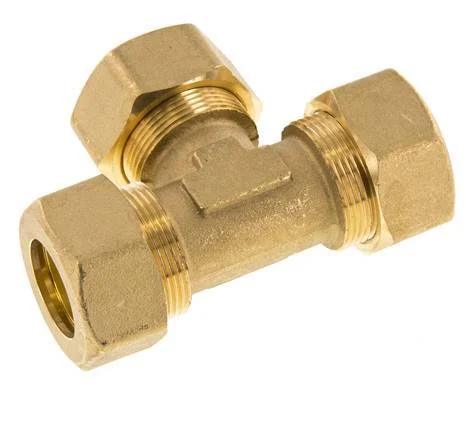

22mm Brass Tee Compression Fitting 54 Bar DIN EN 1254-2

This T-screw connection is designed with 3 compression ring connections in a T shape. Connection 1 is a 22 mm compression ring. Connection 2 is a 22 mm compression ring. Connection 3 is a 22 mm compression ring. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 54 bar (783 psi). It is made in accordance with the DIN EN 1254-2.

Cons:

• Since it has a compression ring connection, it can only be used once

FL3T-C series

The FL3T-C series has 3 connection ports of all compression ring connections or cutting ring connections. They are in a T shape. Made out of brass, steel, or stainless steel they have a max pressure of 630bar for some models.

Specifications

Compression ring connection (mm) : 22
Material : Brass
Max pressure at 20 °C (bar) : 54
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Model : T-piece
Angle adjustable : No
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
With drain : No
