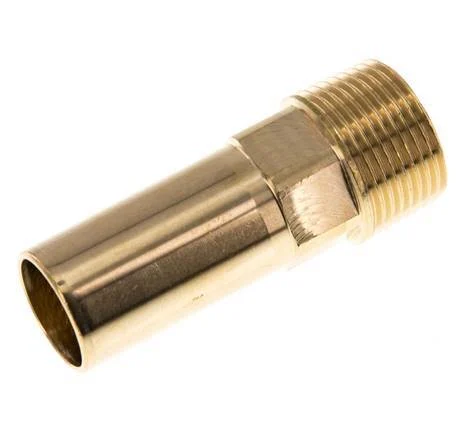

22mm x R3/4” Plug-in Fitting with Male Threads Brass

This is a plug-in fitting. It has connection ports to connect a push-in fitting to a hose, pipe or another pneumatic component. Connection 1 is a 22 mm plug, also called a plug-in connection and connection 2 has R 3/4 inch male threads. The male thread connection has an O-ring seal. The body is made of brass. The connection ports are made of brass. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F).

Pros:

• The male thread connection has an O-ring seal
• It can be used for vacuum applications
• This push-in fitting has an outer hexagon for mounting
• Suitable for use with oiled and unoiled compressed air, neutral gasses, and cold water

Specifications

Thread : 3/4 inch
Plug-in connection : 22 mm
Connection type : Outer thread conical BSPT-R,Plug-in
Material : Brass
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -20
Max temperature (°C) : 70
Fitting features : Vacuum,Outer hexagon,With gasket
Type of sealing : O-ring
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
