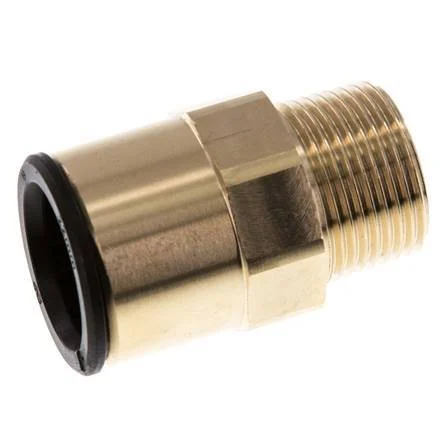

22mm x R3/4” Push-in Fitting with Male Threads Brass/POM NBR

This is a 2 connection straight push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 is a 22 mm push-in port. Connection 2 has R 3/4 inch male threads. The body is made of brass. The connection ports are made of brass and POM. The seal material is NBR. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

• Quick and easy installation and release of pneumatic tubing
• It can be used for vacuum applications
• This push-in fitting has an outer hexagon for mounting
• Suitable for use with oiled and unoiled compressed air, neutral gasses, and cold water

Specifications

Thread : 3/4 inch
Push-in connection : 22 mm
Connection type : Outer thread conical BSPT-R,Push-in
Material : Brass
Seal material : NBR (nitrile rubber)
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -20
Max temperature (°C) : 70
Fitting features : Vacuum,Outer hexagon
Material connection 1 : Brass
Material connection 2 : Polyoxymethylene (POM)
Shape : Straight
With drain : No
