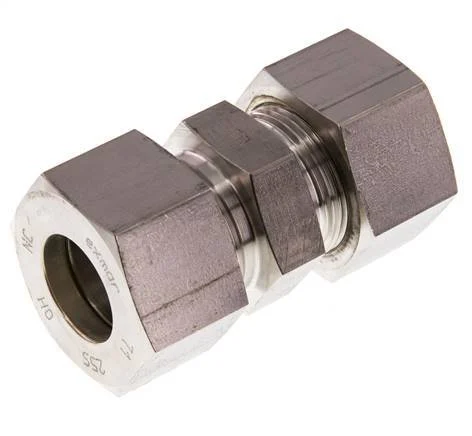

25S Stainless steel Straight Compression Fitting 400 Bar DIN 2353

This straight screw connection is designed with two compression ring connection points. Connection 1 is a 25 mm compression ring. Connection 2 is a 25 mm compression ring. It is a straight fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

Cons:

• Since it has a compression ring connection, it can only be used once

FL2S-C series

The FL2S-C series are straight fittings designed with either 2 compression ring connection points or 2 cutting ring connection points. They are made out of steel.

Specifications

Compression ring connection (mm) : 25
Union nut thread : M36x2.0
Load class (DIN 2353) : S (heavy)
Material : Stainless steel
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Quality of material : Stainless steel 321 (1.4541)
Model : 5-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
With drain : No
