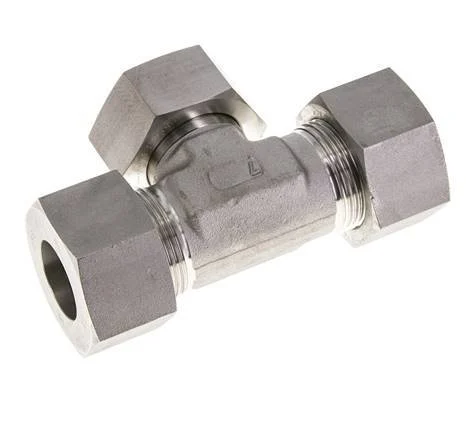

25S Stainless Steel T-Shape Tee Cutting Fitting with Swivel 400 bar FKM Adjustable ISO 8434-1

This stainless steel 1.4571 Tee screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 25 mm cutting ring with a M36x2 union nut. Connection 2 is a 25 mm cutting ring with a M36x2 union nut. Connection 3 has a 25 mm swivel tube connection. The seal material is FKM. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• It has adjustable connection
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Union nut thread : M36x2
Swivel tube connection : 25 S
Cutting ring connection (mm) : 25
Load class (DIN 2353) : S (heavy)
Connection type : Cutting ring,Swivel tube connection
Material : Stainless steel
Seal material : FKM (FPM)
Fitting features : Adjustable
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -20
Max temperature (°C) : 200
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Material quality connection 3 : Stainless steel (1.4571)
With drain : No
