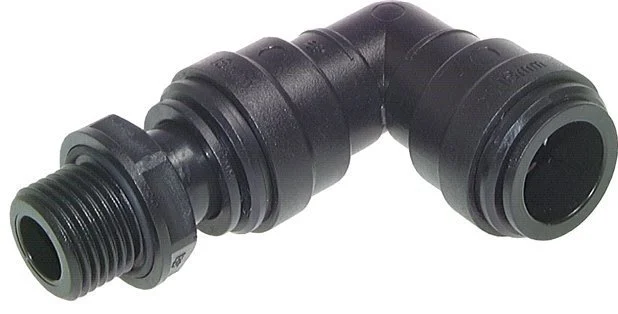

28mm x G3/4” 90deg Elbow Push-in Fitting with Male Threads POM NBR Rotatable

This is a 2 connection elbow push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 is a 28 mm push-in port. Connection 2 has G 3/4 inch male threads. The male thread connection has an O-ring seal. The body is made of POM. The connection ports are made of POM. The seal material is NBR. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 70 °C (-4 to 158 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

• Quick and easy installation and release of pneumatic tubing
• The male thread connection has an O-ring seal
• It can be used for vacuum applications
• The threaded connection is rotatable
• This push-in fitting has an outer hexagon for mounting
• Suitable for use with oiled and unoiled compressed air, neutral gasses, and cold water

Specifications

Thread : 3/4 inch
Push-in connection : 28 mm
Connection type : Outer thread cylindrical BSPP-G,Push-in
Material : Polyoxymethylene (POM)
Seal material : NBR (nitrile rubber)
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -20
Max temperature (°C) : 70
Fitting features : Vacuum,Rotatable,Outer hexagon,With gasket
Type of sealing : O-ring
Bend angle (°) : 90
Material connection 1 : Polyoxymethylene (POM)
Material connection 2 : Polyoxymethylene (POM)
Shape : Elbow
With drain : No
