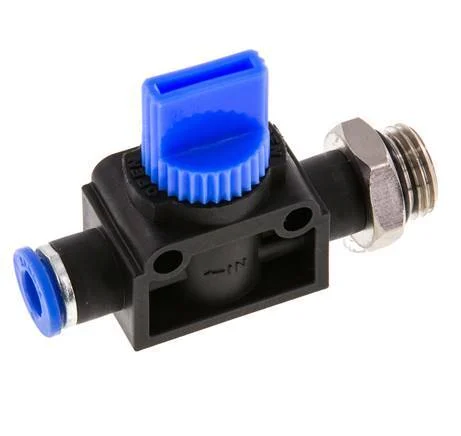

3/2-Way Shut-Off Hand Valve 6 mm – G1/4” Plastic/Brass Tube-side venting

This is a nickel-plated brass/pa66 3/2-way shut-off hand valve used for open/close control of the air flow with residual pressure relief. It has a 6 mm push-in fitting on one side and an G 1/4 inch male threaded port on the other side. It has NBR seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. Use the quarter-turn handle to open or close the valve. It has a venting hole on the push-in fitting side.

Pros:

• Simple design
• Suitable for vacuum applications
• It has a venting hole on the push-in fitting side

Specifications

Connection size : 1/4 inch
Connection type : Outer thread cylindrical BSPP-G,Push-in
Seal material : NBR (nitrile rubber)
Max pressure difference at 20 °C (bar) : 20
Push-in connection : 6 mm
Min temperature (°C) : -20
Max temperature (°C) : 80
Vacuum (bar) : -0.95
Ball valve feature : Tube-side venting
Model : Straight
With drain : No
