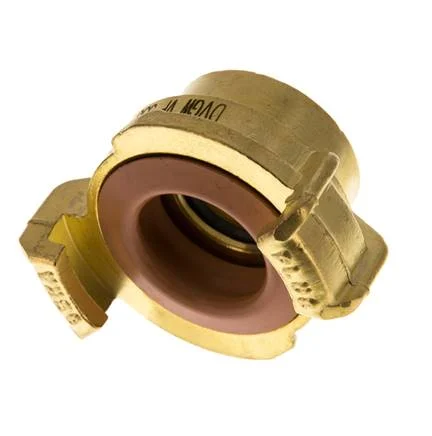

3/4” Female GEKA Garden Hose Brass Coupling KTW

This is a garden hose coupling (also known as GEKA) with G 3/4 inch female threads. The garden hose coupling has a symmetrical and non shut-off design with a 40 mm distance between the claws. It is made of brass with an NBR (nitrile rubber) seal. The maximum operating pressure is 25 bar (363 psi). The coupling is suitable for temperatures between 0 to 80 °C (32 to 176 °F). It has a KTW approval.

Pros:

• Simple and easy connection
• It has a KTW approval

Cons:

• GEKA couplings have no shut-off function

Specifications

Connection size : 3/4 inch
Lug distance : 40 mm
Connection type : Inner thread cylindrical BSPP-G
Seal material : NBR (nitrile rubber)
Material : Brass
Approval : KTW
Max pressure at 20 °C (bar) : 25
Min temperature (°C) : 0
Max temperature (°C) : 80
