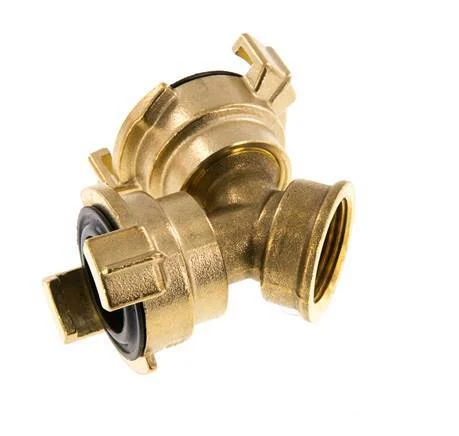

3/4” Female Thread Garden Hose Y Distributor

This is a garden Y-distributor with a G 3/4 inch female threads input port and two garden hose couplings. The outputs have a 40mm distance between the claws. It is made of brass with an NBR (nitrile rubber) seal. The maximum operating pressure is 25 bar (363 psi). The coupling is suitable for temperatures between 0 to 80 °C (32 to 176 °F).

Pros:

• Simple and easy connection
• Allows for distribution of one input to two outlets

Cons:

• GEKA couplings have no shut-off function

Specifications

Connection size : 3/4 inch
Lug distance : 40 mm
Connection type : Inner thread cylindrical BSPP-G
Seal material : NBR (nitrile rubber)
Material : Brass
Max pressure at 20 °C (bar) : 25
Min temperature (°C) : 0
Max temperature (°C) : 80
