Machined steel column features rack and pinion table movement. Cast iron table is accurately gauged, tilts to 45° left or right.Adjustable depth stop and gauge included. Table and base are slotted for easy vise installation. Morse taper spindle is featured, allowing you to use many accessories. UL listed.
Chuck capacity: 7/64” to 5/8”
Spindle taper: MT2
Swing: 13-1/2”
Column diameter: 2-57/64”
Table diameter: 11-1/2”
Minimum RPM: 220
Maximum RPM: 3600
Spindle stroke: 3-1/8”
Motor: 3/4” HP
Base size: 19” x 11-1/4”
Overall height: 62-7/8”
Tool weight: 138 lbs.

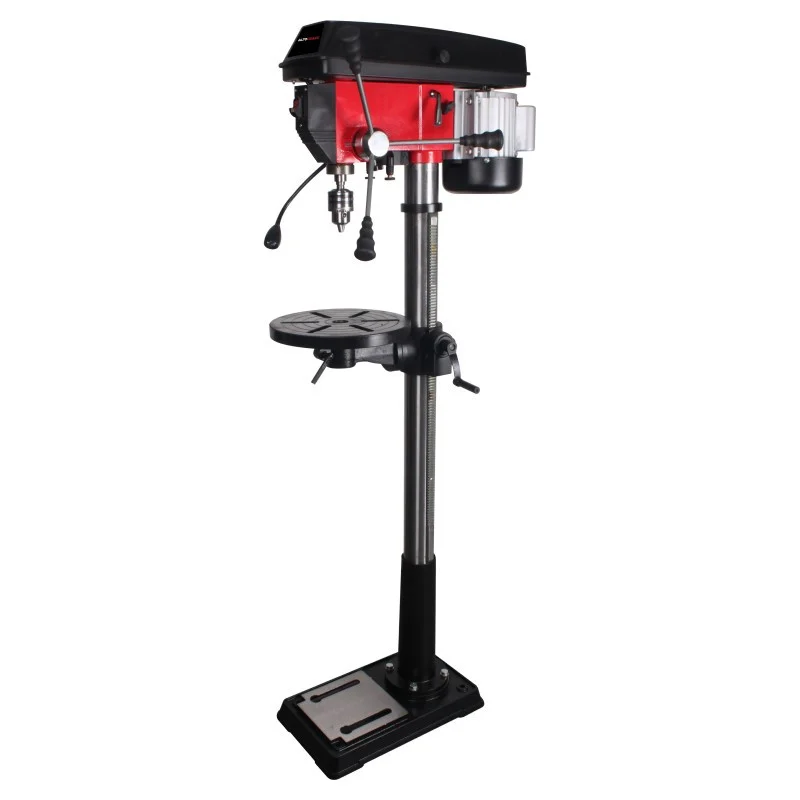

16 Speed Floor Drill Press
