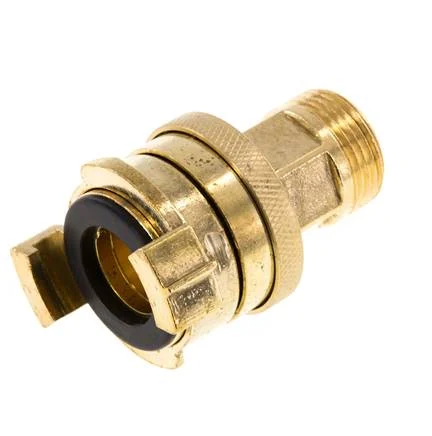

3/4” Male Safety GEKA Garden Hose Brass Coupling

This is a garden hose coupling (also known as GEKA) with G 3/4 inch male threads. The garden hose coupling has a symmetrical and non shut-off design with a 40 mm distance between the claws. It is made of brass with an NBR (nitrile rubber) seal. The maximum operating pressure is 25 bar (363 psi). The coupling is suitable for temperatures between 0 to 80 °C (32 to 176 °F). This coupling has a safety ring to tighten after coupling to prevent accidental decoupling.

Pros:

• Simple and easy connection
• It has a safety ring to tighten after coupling to prevent accidental decoupling

Cons:

• GEKA couplings have no shut-off function

Specifications

Connection size : 3/4 inch
Lug distance : 40 mm
Connection type : Outer thread cylindrical BSPP-G
Seal material : NBR (nitrile rubber)
Material : Brass
Coupling features : Safety
Max pressure at 20 °C (bar) : 25
Min temperature (°C) : 0
Max temperature (°C) : 80
