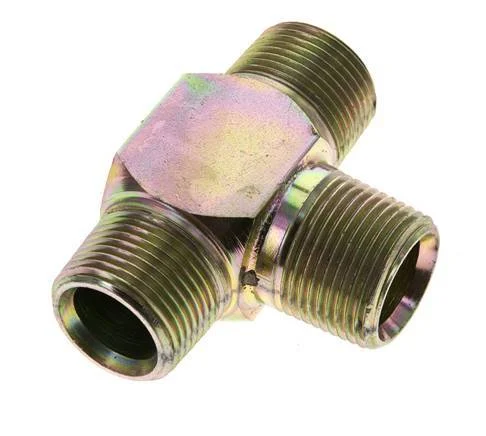

3/4” NPT Male Zinc plated Steel Tee 170 Bar – Hydraulic

This T-piece is designed with three male threaded connections in a T shape. Connection 1 has male NPT 3/4 inch threads. Connection 2 has male NPT 3/4 inch threads. Connection 3 has male NPT 3/4 inch threads. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 170 bar (2466 psi).

FL3T-M series

The FL3T-M series has 3 connection ports of male threads in the shape of a T. Made out of brass and steel, they have a max pressure from 16 to 345 bar.

Specifications

Thread : 3/4 inch
Thread (smallest) : 3/4 inch
Connection type : Outer thread conical (NPT)
Material : Steel
Fitting features : Hydraulic
Max pressure at 20 °C (bar) : 170
Model : T-piece
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
Surface protection connection 3 : Galvanic/electrolytic zinc plated
