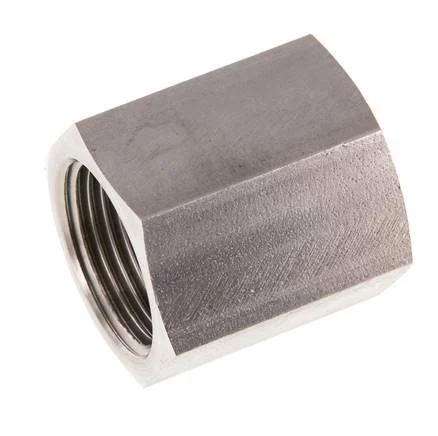

3/4” NPT Stainless steel Socket 170 Bar – Hydraulic

This sleeve (reducing socket) is designed with reducing NPT threads (round body). Connection 1 has female NPT 3/4 inch threads. Connection 2 has female NPT 3/4 inch threads. It is a straight fitting. It is made out of stainless steel (1.4401). At 20 °C (68 °F), it can handle a maximum pressure of 170 bar (2466 psi).

FL2S-F series

The FL2S-F series are straight sleeves designed either as reduces or weldable for female threads. They are made out of brass, cast iron, steel, sainless steel, or aluminum.

Specifications

Thread : 3/4 inch
Thread (smaller) : 3/4 inch
Connection type : Inner thread conical (NPT)
Material : Stainless steel
Max pressure at 20 °C (bar) : 170
Fitting features : Hydraulic
Quality of material : Stainless steel 316 (1.4401)
Model : 1-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4401)
Material quality connection 2 : Stainless steel 316 (1.4401)
Shape : Straight
