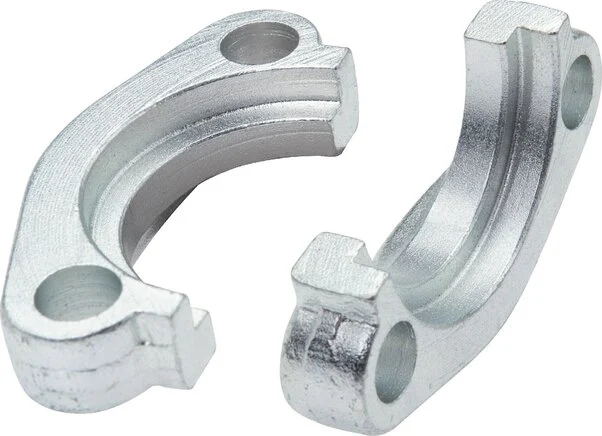

3/4” SAE Flange Halves 3000 PSI Steel ISO 6162-1

These are SAE flange halves for SAE fittings with a flange diameter of 38.1 mm. They adhere to SAE Code 61 (3000 psi working pressure) and have an SAE-4 mounting pattern size of 3/4 inch. The body is made of zinc plated steel. The maximum pressure is 350 bar (5075 psi). It is made in accordance with the ISO 6162-1.

Note: The operating pressure is dependent on the strength of the screws.

Pros:

• Adheres to ISO 6162-1
• Suitable for hydraulic applications

Specifications

Material : Steel
SAE – hole pattern : 3/4 inch – SAE (3000 PSI)
Number of bolt holes : 4
Diameter bolt hole (mm) : 10.75
Max pressure (bar) : 350
Surface protection : Galvanic zink plated
Standard : ISO 6162-1
