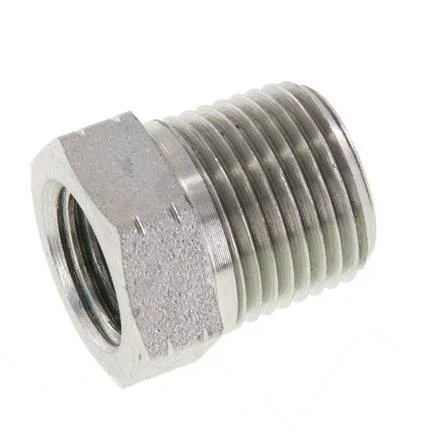

3/8” NPT x 1/4” NPT M/F Zinc plated Steel Reducing Ring 210 Bar – Hydraulic [2 Pieces]

This reducing nipple is designed with male and female threads. Connection 1 has male NPT 3/8 inch threads. Connection 2 has female NPT 1/4 inch threads. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 210 bar (3046 psi).

FL2S-FM series

The FL2S-FM series are straight fittings with one female connection point and one male connection point. Thread standards of NPT, R, Rp, G, and metric are available. They are a 1-part design made out of brass, cast iron, steel, nitrified steel, and stainless steel.

Specifications

Thread : 3/8 inch
Thread (smaller) : 1/4 inch
Connection type : Outer thread conical (NPT),Inner thread conical (NPT)
Material : Steel
Max pressure at 20 °C (bar) : 210
Fitting features : Hydraulic,Reducing
Model : 1-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
