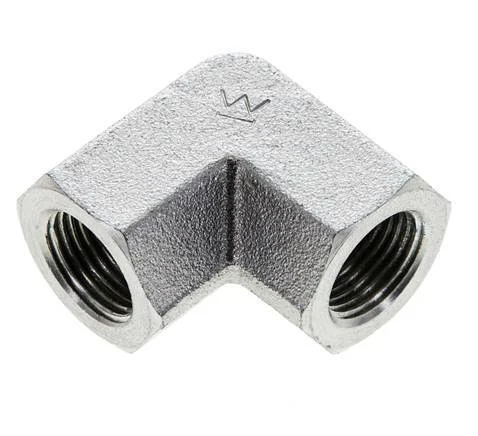

3/8” NPT Zinc plated Steel 90 deg Elbow Fitting 210 Bar – Hydraulic

This elbow is designed with female threads at an angle. Connection 1 has female NPT 3/8 inch threads. Connection 2 has female NPT 3/8 inch threads. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 210 bar (3046 psi). The input and the output are at a 90° angle.

FL2E-F series

The FL2E-F series are elbow fittings with female threads. They have 2 ports at either a 45 or 90 degree bend. Made out of brass, steel, cast iron, or stainless steel that has been forged or casted. NPT, G, Rp, or metric threads.

Specifications

Thread : 3/8 inch
Thread (smaller) : 3/8 inch
Connection type : Inner thread conical (NPT)
Material : Steel
Max pressure at 20 °C (bar) : 210
Fitting features : Hydraulic
Model : 1-part
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
