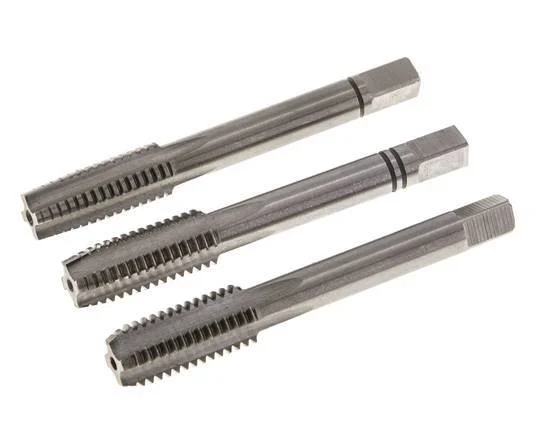

This is a hand thread tap 3-piece for M10 metric threads with 1.5 mm pitch. It consists of a taper tap, second tap and plug tap in accordance to DIN ISO 13. To use the thread tapping tool, drill a 8.5 mm hole beforehand.
Pros:
- Suitable for steel and cast steel alloys and non-alloys (<800 N/mm2 tensile strength)
- Also suitable for cast and sintered iron, graphite, brass and bronze
- Thread cutting in accordance with DIN ISO 13
- Tolerance according to ISO 2/6H
Specifications
Thread type : Metric
Thread size : 10
Pitch thread (mm) : 1.5
Cutting material : HSS
Model : Hand tap
