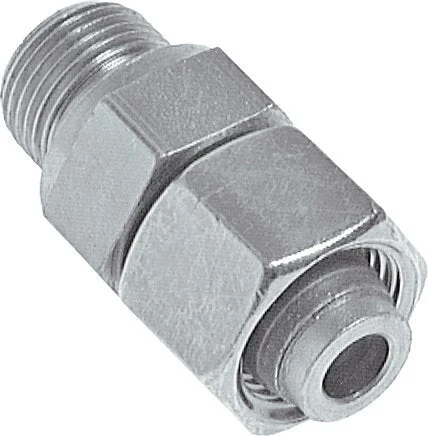

30S & M42x2 Zink plated Steel Straight Swivel with Male Threads 400 bar NBR Adjustable ISO 8434-1

This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 30 mm swivel tube connection. Connection 2 has male M 42×2 threads. The seal material is NBR. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• It has adjustable connection
• Suitable for hydraulic applications

Specifications

Thread : M42 x 2
Load class (DIN 2353) : S (heavy)
Swivel tube connection : 30 S
Connection type : Outer thread metric,Swivel tube connection
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -35
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : Adjustable
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
With drain : No
