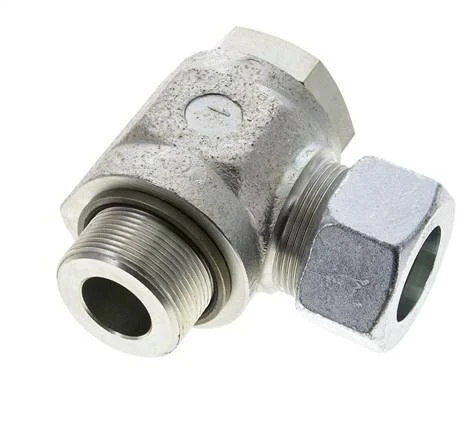

30S & M42x2 Zink plated Steel Swivel Joint Cutting Fitting with Male Threads 250 bar NBRO-ring Rotatable ISO 8434-1

This zink plated steel elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 30 mm cutting ring with a M42x2 union nut. Connection 2 has male M 42×2 threads. It has an o-ring for sealing. The seal material is NBR. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Thread connection is rotatable
• With O-ring for sealing
• Suitable for hydraulic applications

Specifications

Thread : M42 x 2
Union nut thread : M42 x 2
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 30
Connection type : Cutting ring,Outer thread metric
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 250
Min temperature (°C) : -35
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Type of sealing : O-ring
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
With drain : No
