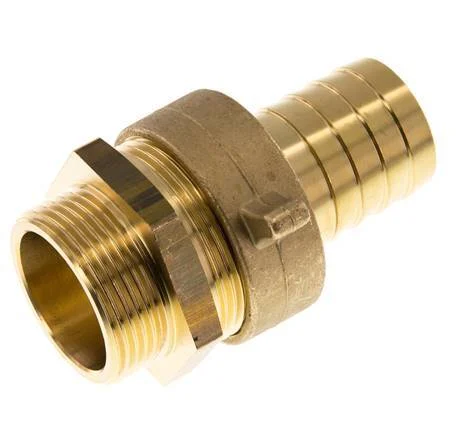

32 mm (1-1/4”) & G1-1/4” Brass Hose Barb MaleConical Sealing NBR Wing Nut

This brass hose screw-in connection is designed with a hose pillar and a male thread. Connection 1 is hose pillar, designed for a hose with an inner diameter of 32 mm (1-1/4 inch). Connection 2 has G 1-1/4 inch male threads. It has a conical sealing on threaded connection. The seal material is NBR. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from 0 to 70 °C (32 to 158 °F).

Pros:

• It has a conical sealing on threaded connection
• It has union nut to screw hose pillar connection with threaded connection point
• Suitable for neutral and non-corrosive media

Specifications

Thread : 1 1/4 inch
Hose pillar connection : 1 1/4 inch (32 mm)
Connection type : Outer thread cylindrical BSPP-G,Hose pillar
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : 0
Max temperature (°C) : 70
Fitting features : With wing union nut
Type of sealing : Conical sealing
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
