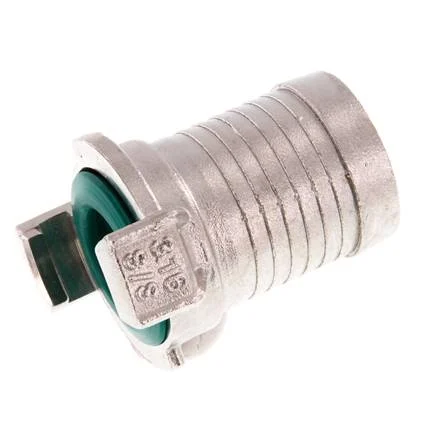

32 mm (1 1/4”) Hose Barb GEKA Garden Hose Stainless Steel Coupling

This is a garden hose coupling (also known as GEKA) with a 32 mm (1 1/4 inch) hose barb. The garden hose coupling has a symmetrical and non shut-off design with a 40 mm distance between the claws. It is made of stainless steel with an FKM seal. The maximum operating pressure is 25 bar (363 psi). The coupling is suitable for temperatures between -20 to 200 °C (-4 to 392 °F).

Pros:

• Simple and easy connection
• Stainless steel couplings have excellent corrosion resistance

Cons:

• GEKA couplings have no shut-off function

Specifications

Lug distance : 40 mm
Hose pillar connection (mm) : 32
Hose pillar connection inch : 1 1/4 inch
Seal material : FKM (FPM)
Material : Stainless steel
Quality of material : Stainless steel 316 (1.4408)
Max pressure at 20 °C (bar) : 25
Min temperature (°C) : -20
Max temperature (°C) : 200
