About this item

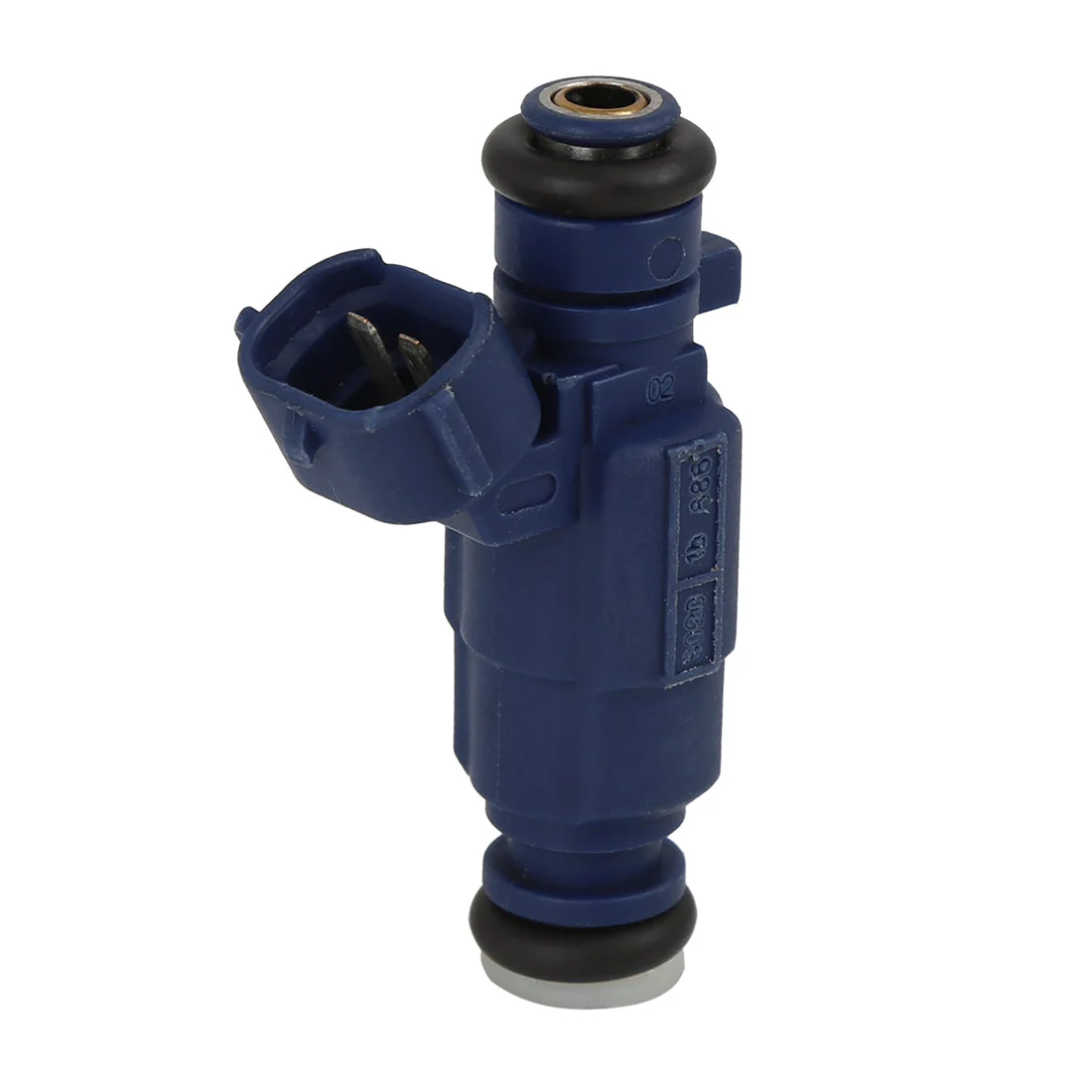

- The Part Number(OE Number): 35310-2B000, 9250930023, 35310-02500
- Fitment: for Hyundai i20 GB 1.4L 2014/11-2018/12; for Hyundai i30 FD 1.4L 2007/10-2011/11; for Hyundai i30 Coupe 1.4L 2014/12-2018/12; for Hyundai i30 CW FD 1.4L 2007/10-2012/06 2009/11-2012/06; for Kia Cee’D Schrägheck 1.4L 2006/12-2012/12
- Fuel injector enables fast start up in cold environments; , and no modification needed.
- Product Included: 1 x Fuel Injector; Material: Metal and Plastic; Pin Number: 2; Voltage: DC 12V; Orifice Type: 4 Holes Disc
- Notice: This is a non-OEM product, accessory only! Please make sure that the OE number and make/model/year/trim are the same as your OEM product before buying!
Description:
- The fuel injector exactly matches the internal coil resistance and fuel flow rate of OEM fuel injector.
Specification:
- O-Rings Product Included: Yes, preinstalled
- Orifice Type: 4 Holes Disc
- OE Number: 35310-2B000, 9250930023, 35310-02500
- Color: Dark Blue
- Size: 61x36x20mm / 2.4″x1.42″x0.79″(L*W*H)
- Voltage: DC 12V
- Pin Number: 2
Note:
- This installation should be done by an experienced mechanic who has access to a factory manual and all required tools!
- This is a non-OEM product, accessory only!
Fitment:
- for Hyundai i20 GB 1.4L 2014/11-2018/12
- for Hyundai i30 FD 1.4L 2007/10-2011/11
- for Hyundai i30 Coupe 1.4L 2014/12-2018/12
- for Hyundai i30 CW FD 1.4L 2007/10-2012/06 2009/11-2012/06
- for Kia Cee’D Schrägheck 1.4L 2006/12-2012/12
NOTE:
- Please allow 0.5-1mm difference due to manual measurement.
- Please check for the Fit for and product description before purchasing to make sure this part fits your car.
Includes:
- 1 x Fuel Injector
Installation:
- Step 1. Make sure the engine is cool down. Disconnect the battery.
- Step 2. Remove the bolts and brackets from the fuel rail.
- Step 3. Disconnect the plug on each injector.
- Step 4. Lift the fuel rail and remove the injector from the fuel rail.
- Step 5. Press the new injector into the rail. Reattach the fuel rail and put the injectors in their respective holes.
- Step 6. Bolt down fuel rail. Reattach fuel line. Plug in injector connectors. Reconnect battery.
- Step 7. Double check for fuel leaks before and after starting the engine.
