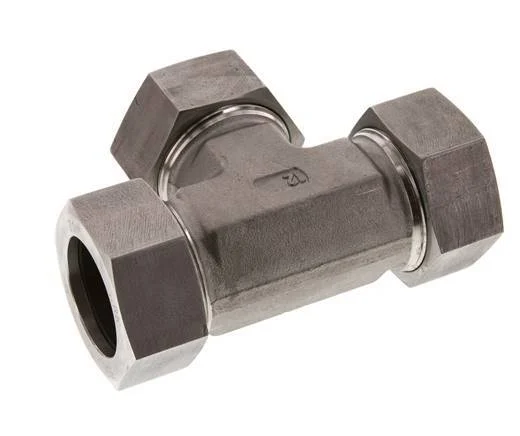

35L Stainless steel Tee Cutting Ring 160 Bar DIN 2353

This T-screw connection is designed with 3 cutting ring connections in a T shape. Connection 1 is a 35 mm cutting ring. Connection 2 is a 35 mm cutting ring. Connection 3 is a 35 mm cutting ring. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 160 bar (2321 psi). According to the DIN 2353, it has an L (light) load class. It is made in accordance with the ISO 8434-1 (DIN 2353).

Cons:

• Since it has a cutting ring connection, it can only be used once

FL3T-C series

The FL3T-C series has 3 connection ports of all compression ring connections or cutting ring connections. They are in a T shape. Made out of brass, steel, or stainless steel they have a max pressure of 630bar for some models.

Specifications

Union nut thread : M45 x 2
Cutting ring connection (mm) : 35
Load class (DIN 2353) : L (light)
Material : Stainless steel
Max pressure at 20 °C (bar) : 160
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : T-piece
Angle adjustable : No
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel 316 Ti (1.4571)
Material quality connection 2 : Stainless steel 316 Ti (1.4571)
Material quality connection 3 : Stainless steel 316 Ti (1.4571)
With drain : No
