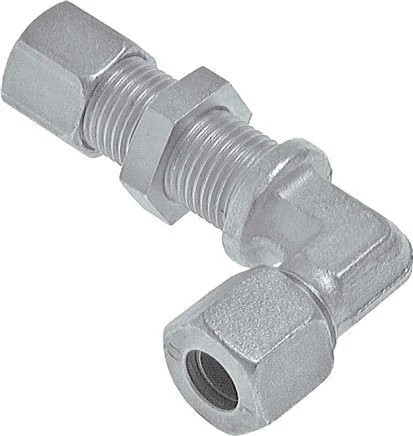

38S Zink plated Steel Elbow Cutting Fitting Bulkhead 315 bar ISO 8434-1

This zink plated steel elbow screw connection is designed with two cutting ring connection points. Connection 1 is a 38 mm cutting ring with a M52x2 union nut. Connection 2 is a 38 mm cutting ring with a M52x2 union nut. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications

Specifications

Union nut thread : M52 x 2
Load class (DIN 2353) : S (heavy)
Cutting ring connection (mm) : 38
Connection type : Cutting ring
Material : Steel
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : Bulkhead
Bulkhead nut : M52 x 2
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
With drain : No
