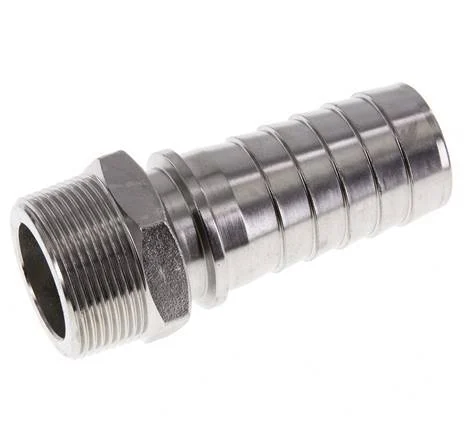

38×54 mm & R1-1/2” Stainless Steel 1.4301 Hose Pillar with Male Threads DIN EN 14423

This stainless steel 1.4301 hose screw-in connection is designed with a hose pillar and a male thread. Connection 1 is a hose pillar, designed for a hose with an internal / external diameter of 38×54 mm. Connection 2 has R 1-1/2 inch male threads. The maximum pressure is 18 bar (261 psi). The fitting is suitable for saturated steam max. +210 °C (410 °F), water up to +120 °C (248 °F). It is made in accordance with the DIN EN 14423.

Pros:

• Adheres to DIN EN 14423
• Suitable for saturated steam
• Stainless steel material has better chemical resistance than other materials

Specifications

Thread : 1 1/2 inch
Hose inside x outside : 38×54 mm
Connection type : Outer thread conical BSPT-R,Hose pillar
Material : Stainless steel
Max pressure at 20 °C (bar) : 18
Max temperature (°C) : 210
Standard : DIN EN 14423
Fitting features : Saturated steam
Quality of material : Stainless steel 304 (1.4301)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 304 (1.4301)
Material quality connection 2 : Stainless steel 304 (1.4301)
Shape : Straight
With drain : No
