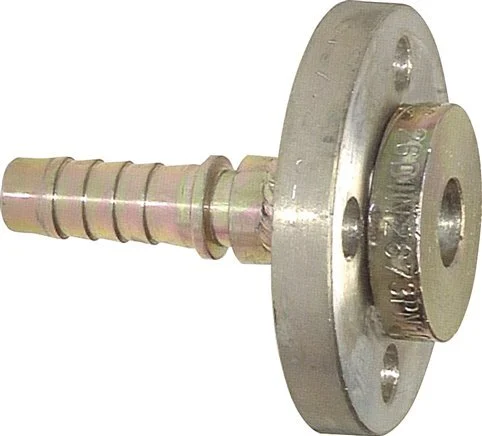

38×54 mm Stainless Steel 1.4401 Hose Pillar with Turnable Flange PN 10/16/25/40 DIN EN 14423 / DIN 2826

This stainless steel 1.4401 flange is designed with a hose pillar and a flange connection. Connection 1 is a hose pillar, designed for a hose with an internal / external diameter of 38×54 mm. Connection 2 is a flange connection with size of DN 40 mm. The maximum pressure is 18 bar (261 psi). The fitting is suitable for saturated steam max. +210 °C (410 °F), water up to +120 °C (248 °F). The plate flange dimensions corresponds to PN 10/16/25/40. It is made in accordance with the DIN EN 14423 / DIN 2826.

Pros:

• Adheres to DIN EN 14423 / DIN 2826
• Suitable for saturated steam
• The flange connection is turnable
• Stainless steel material has better chemical resistance than other materials

Specifications

Hose inside x outside : 38×54 mm
Connection type : Flange,Hose pillar
Material : Stainless steel
Nominal diameter (mm) : 40
Max pressure at 20 °C (bar) : 18
Max temperature (°C) : 210
Standard : DIN EN 14423 / DIN 2826
Fitting features : Saturated steam,Turnable flange
Quality of material : Stainless steel 316 (1.4401)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4401)
Material quality connection 2 : Stainless steel 316 (1.4401)
Shape : Straight
With drain : No
