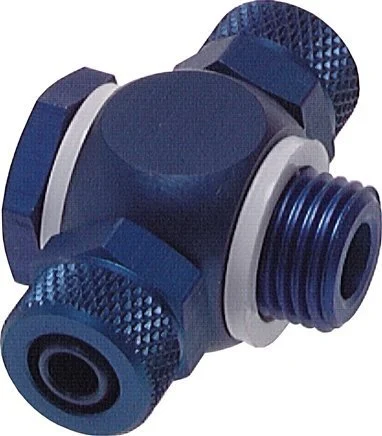

4.3×3 & M5 Aluminum Banjo Tee Push-on Fitting with Male Threads with O-ring

This aluminum banjo tee push-on fitting is designed with two push-on connections and with one male threaded connection. Connection 1 is a 4.3×3 mm push-on connection. Connection 2 is a 4.3×3 mm push-on connection. Connection 3 has M 5 male threads. It has an O-ring for sealing. The operating pressure range is -0.99 to 15 bar (-14 to 218 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -15 to 70 °C (5 to 158 °F).

Pros:

• Easy assembly and disassembly with the push-on connection design
• It can be used for vacuum applications
• The male thread connection has an O-ring seal

Specifications

Thread : M5
Push-on connection : 3×4.3 mm
Connection type : Push-on,Outer thread metric
Material : Aluminum
Fitting features : Vacuum
Min pressure (bar) : -0.99
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -15
Max temperature (°C) : 70
Type of sealing : O-ring
Model : Banjo
Material connection 1 : Aluminum
Material connection 2 : Aluminum
Material connection 3 : Aluminum
With drain : No
