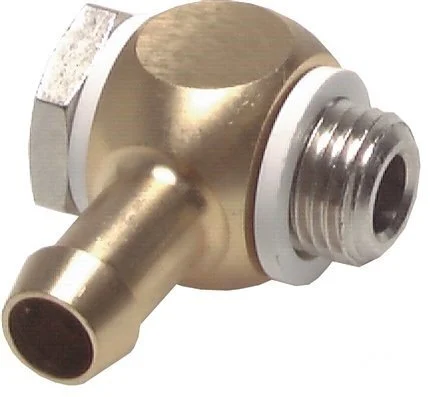

4 mm & G1/8” Brass Elbow Hose Barb with Male Threads PVC Rotatable [2 Pieces]

This brass elbow hose screw-in connection is designed with a hose pillar and a male thread. Connection 1 is hose pillar, designed for a hose with an inner diameter of 4 mm. Connection 2 has G 1/8 inch male threads. The seal material is PVC. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -10 to 70 °C (14 to 158 °F).

Pros:

• Thread connection is rotatable
• Suitable for neutral and non-corrosive media

Specifications

Thread : 1/8 inch
Hose pillar connection : 4 mm
Connection type : Outer thread cylindrical BSPP-G,Hose pillar
Material : Brass
Seal material : Plastic
Max pressure at 20 °C (bar) : 16
Min temperature (°C) : -10
Max temperature (°C) : 70
Fitting features : Rotatable
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
With drain : No
