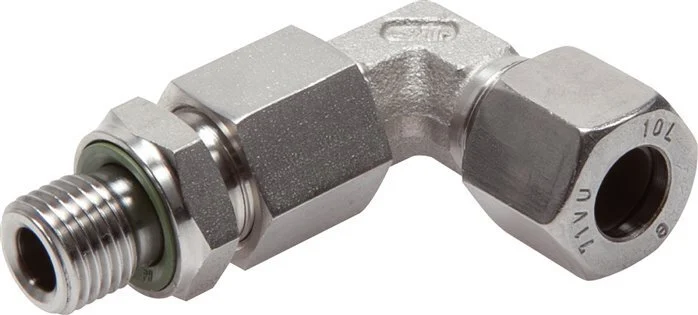

42L & M48x2 Stainless Steel Elbow Cutting Fitting with Male Threads 160 bar Adjustable ISO 8434-1

This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. It has an adjustable connection. Connection 1 is a 42 mm cutting ring with a M52x2 union nut. Connection 2 has male M 48×2 threads. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• It has adjustable connection
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Thread : M48 x 2
Union nut thread : M52 x 2
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 42
Connection type : Cutting ring,Outer thread metric
Material : Stainless steel
Max pressure at 20 °C (bar) : 160
Min temperature (°C) : -20
Max temperature (°C) : 200
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : Adjustable
Quality of material : Stainless steel (1.4571)
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Shape : Elbow
With drain : No
