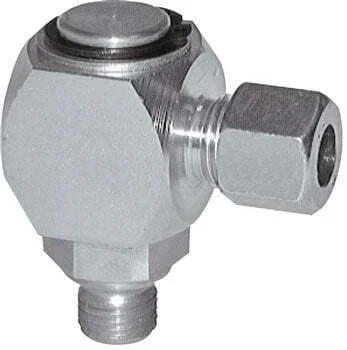

42L & M48x2 Zink plated Steel Swivel Joint Cutting Fitting with Male Threads DN 32100 bar NBR Rotatable ISO 8434-1

This zink plated steel elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 42 mm cutting ring with a M52x2 union nut. Connection 2 has male M 48×2 threads. The seal material is NBR. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -20 to 100 °C (-4 to 212 °F). The nominal diameter is 32 mm. It can withstand 0.5 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Thread connection is rotatable
• Suitable for hydraulic applications

Cons:

• It is necessary to use a flexible connection

Specifications

Thread : M48 x 2
Union nut thread : M52 x 2
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 42
Connection type : Cutting ring,Outer thread metric
Material : Steel
Seal material : NBR (nitrile rubber)
Nominal diameter (mm) : 32
Max pressure at 20 °C (bar) : 100
Min temperature (°C) : -20
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Max. number of revolutions (Rpm) : 0.5
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
With drain : No
