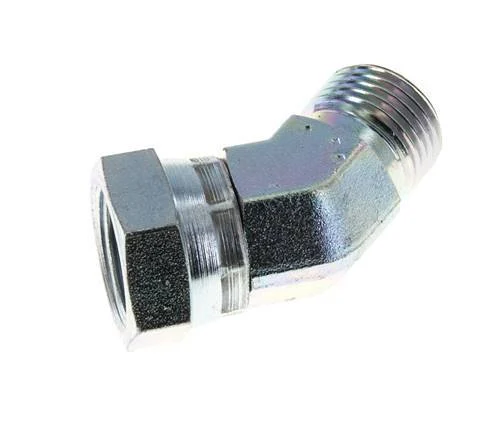

45deg Angled Fitting G1/2” Female x Male High Pressure Steel 60° Cone 300bar (4215.0psi) Hydraulic

This 45-degree elbow fitting is used for high pressure hydraulic applications up to 300 bar (4215.0 psi). Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. It has a 60° cone seat design.

Specifications

Thread : 1/2 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 300
Fitting features : Hydraulic
Type of sealing : 60° cone
Bend angle (°) : 45
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
